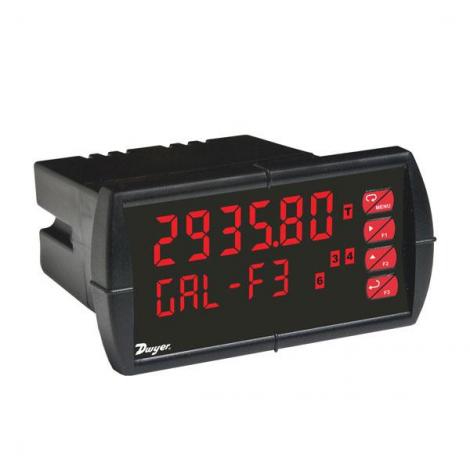

Series APM, PPM, MPM Panel Meter
1/8 DIN Multi-Pump Alternation Control, Open-Channel Flow, Rate and Totalizer
The Series APM Dual Line Configurable Panel Meter is specifically designed for displaying flow rate and total from a flow meter with an analog output such as 4 to 20 mA or 0 to 10 V. The APM is particularly well-suited for flow applications and can display flow rate and total at simultaneously.
The Series MPM Dual Line Configurable Panel Meter has the ability to obtain nonlinear input signals and linearize them with simple to use math functions such squareroot extractor, weirs and flumes exponential linearizer, horizontal round tank linearizer or general purpose 32-point linearizer. Unit accepts 0 to 20 mA, 4 to 20 mA, 0 to 5 V, or ±10 V inputs and requires 85 to 265 VAC or 12/24 VDC power supply. Choose from RS-232, RS-422/485 serial communication options or any available expansion modules, accessories and enclosures.
The Series PPM Dual Line Configurable Panel Meter displays flow rate and total simultaneously, with a programmable relay and 4 to 20 mA options for flow rate or flow total. The PPM is designed for displaying flow rate and total from a pulsed input provided by open collector, NPN, PNP, TTL, switch contact, sine wave, or square wave.
Base Model # | Description | Normally In Stock | Add to Cart / Configure Part # |
APM- | Multi-Pump Alternation Control, Open-Channel Flow, Rate and Totalizer | Inquire | Configurator |
MPM- | 1/8 DIN, Dual-Line 6-Digit Display, Multi-Pump Alternation Control | Inquire | Configurator |
PPM- | 1/8 DIN, Dual-Line 6-Digit Display, Flow Rate and Totalizer | Inquire | Configurator |
