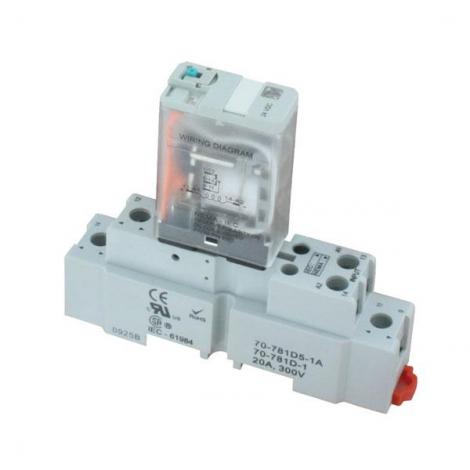

Series 781 SPDT & 782 DPDT Ice Cube Relays
ICE CUBE RELAYS SPDT or DPDT Operation
The Series 781 & 782 Ice Cube Relays are full-featured relays that can be used to handle loads up to 15 amps for AC or DC circuits. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color coded and a removable lock-down lever holds the test button in place.
Select & Configure Model
Base Model # | Description | Normally In Stock | Configure Part # |
781XAXRM4L-120A | SPDT ice cube relays, 15 amp rating, 120 VAC 50/60 Hz, coil resistance 4430Ω | Inquire | |
781XAXRM4L-240A | SPDT ice cube relays, 15 amp rating, 240 VAC 50/60 Hz, coil resistance 15720Ω | Inquire | |
781XAXRM4L-24A | SPDT ice cube relays, 15 amp rating, 24 VAC 50/60 Hz, coil resistance 180Ω | Inquire | |
781XAXRM4L-24D | SPDT ice cube relays, 15 amp rating, 24 VDC, coil resistance 750Ω | Inquire | |
782XBXM4L-120A | DPDT ice cube relays, 15 amp rating, 120 VAC 50/60 Hz, coil resistance 4430Ω | Inquire | |
782XBXM4L-240A | DPDT ice cube relays, 15 amp rating, 240 VAC 50/60 Hz, coil resistance 15720Ω | Inquire | |
782XBXM4L-24A | DPDT ice cube relays, 15 amp rating, 24 VAC 50/60 Hz, coil resistance 180Ω | Inquire | |
782XBXM4L-24D | DPDT ice cube relays, 15 amp rating, 24 VDC, coil resistance 650Ω | Inquire |
