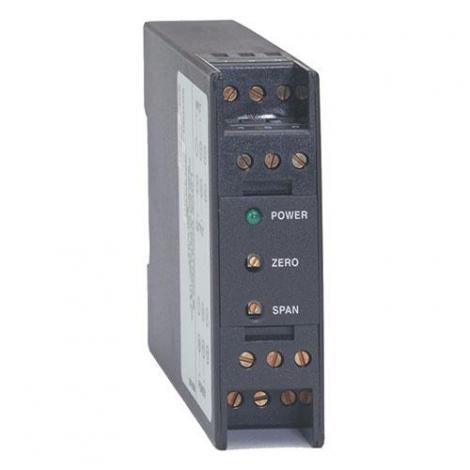

Series SC4 Temperature Transmitters
Accepts Virtually All Standard Process Signals
Linearized and isolated RTD and Thermocouple transmitters are part of the Series SC4000 Iso Verter® II Signal Conditioning Modules. These modules completely isolate the input from the output and from the ground. Compatible with industry standard 35 mm DIN Rail mount transmitters and isolators, these modules are easily applied in new or existing installations.
The SC4151 RTD Transmitters each offer a fixed scale range input (selected when ordered) and a linearized, isolated, field selectable 4 to 20 mA or 0 to 10 VDC output. Output is selected by simple switch settings. Low voltage units (SCL) are also available.
SC4130 Thermocouple Transmitter offers a fixed scale range input (selected when ordered) and a linearized, isolated, field selectable 4 to 20 mA or 0 to 10 VDC output. Output is selected by simple switch settings. Low voltage units (SCL) are also available.
Base Model # | Transmitter Type | Approvals | Ambient Operating Temperature | Sensor Input Type | Normally In Stock | Add to Cart / Configure Part # |
SC4130 | DIN Rail Mount | N/A | 0 | Thermocouple | Inquire | Configurator |
SCL4130 | DIN Rail Mount | N/A | 0 | Thermocouple | Inquire | Configurator |
SC4151 | DIN Rail Mount | N/A | 0 | RTD | Inquire | Configurator |
SCL4151 | DIN Rail Mount | N/A | 0 | RTD | Inquire | Configurator |
