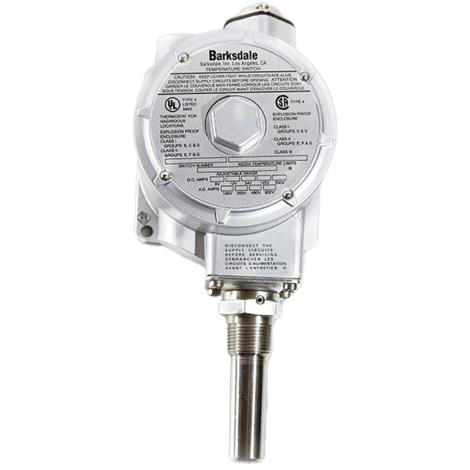

T1X / T2X / L1X Explosion-Proof Temperature Switches
T1X, T2X and L1X temperature switches provide mechanical temperature control in hazardous industrial locations. T1X and T2X use a remote bulb and capillary; L1X uses local immersion sensing. T1X and L1X have one SPDT circuit, while T2X has two independent SPDT circuits.
The enclosure provides NEMA 4, 7 and 9 protection with a tamper-resistant external adjustment. Select the sensing arrangement, switching element and temperature range, then confirm the approvals for the complete ordered construction.
Select & Configure Model
| Base Model # | Sensing / Layout | Temperature Range / Setpoint | Outputs | Probe / Connection | Availability | Add to Cart / Configure Part # |
| T1X | Remote bulb/capillary; single setpoint | -50 to 600°F; selected range governs | 1 SPDT | 6, 12 or 25 ft capillary; optional ATEX | Inquire | Configurator |
| T2X | Remote bulb/capillary; dual setpoints | -50 to 600°F; selected range governs | 2 independent SPDT circuits | 6, 12 or 25 ft capillary; optional ATEX | Inquire | Configurator |
| L1X | Local immersion; single setpoint | -50 to 450°F; selected range governs | 1 SPDT | 304 stainless steel sensor; optional thermowell / ATEX | Inquire | Configurator |
