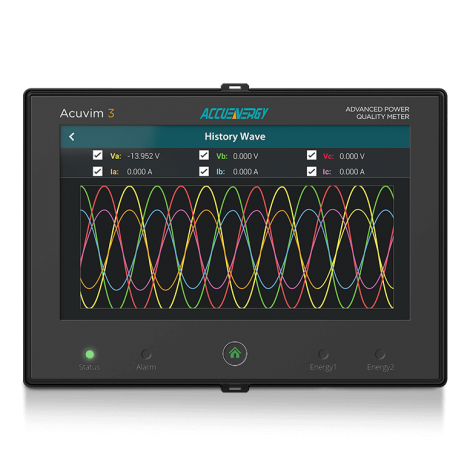

Acuvim 3 Series Advanced Power Quality Meters
The Acuvim 3 Series is a revenue-grade power-quality analyzer for energy management and electrical-system diagnostics. Its IEC 61000-4-30 Class A measurements include waveform recording, harmonics, transients and event analysis. Panel-display and DIN-rail versions support 5A/1A or mV/Rogowski current inputs, data logging and network integration.
Select & Configure Model
| Base Model # | Power system | Voltage | Current | Power Supply | Output | Add to Cart / Configure Part # |
| Acuvim-3- | 1PH / 3PH | 400 VAC L-N; 690 VAC L-L (+20%) | 5A/1A or 333 mV/Rogowski | P1: 100-415 VAC / 100-300 VDC; P2: 20-60 VDC | Digital / relay I/O; optional modules | Configurator |
