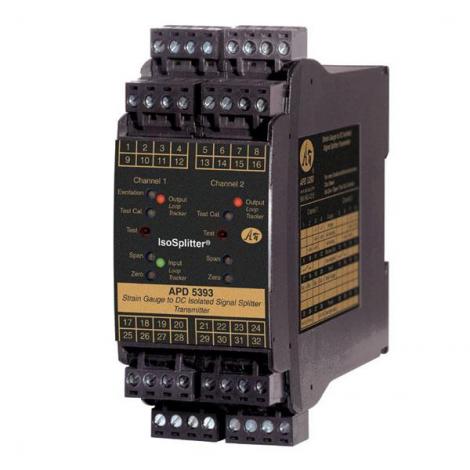

APD 5393 Series Strain Gauge/Bridge/Load Cell to DC Signal Splitters


IsoSplitter Strain Gauge/Bridge/Load Cell to DC Signal Splitter/Isolator/Transmitter

The APD 5393 IsoSplitter accepts a strain gauge, bridge, or load cell input and provides two optically isolated DC voltage or current outputs that are linearly related to the input. The input range and each output range are independent and can be specified as required. This provides an economical solution when one signal must be sent to two different devices. Typical applications include isolation, output splitting, output device separation and redundancy (i.e. to prevent failure of the entire loop if one device fails), or a combination of these. The input signal is filtered, amplified, split, and then passed through an opto-coupler to the output stages. Full 4-way isolation (input, output 1, output 2, power) make this module useful for ground loop elimination, common mode signal rejection, and noise pickup reduction.


Select & Configure Model
Base Model #PowerDescriptionSocketApprovalsNormally
In Stock
Configure Part #

APD 539385-265 VAC, 50/60 Hz or 60-300 VDCIsoSplitter 1 bridge, strain gauge, load cell input to 2 DC outputs. Fully isolated.N/AUL Listed - USA & CanadaInquire
APD 5393 D9-30 VDC or 10-32 VACIsoSplitter 1 bridge, strain gauge, load cell input to 2 DC outputs. Fully isolated.N/AUL Listed - USA & CanadaInquire
