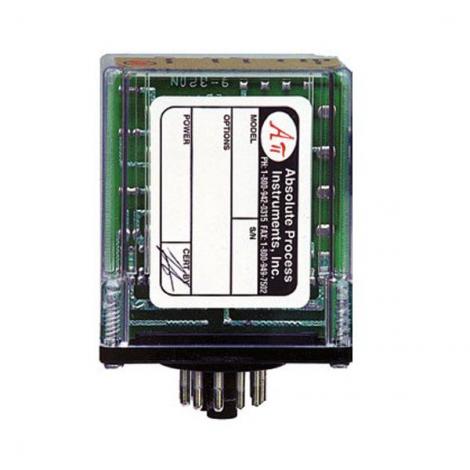

API 1000 G & 1020 G Series DC Input Alarms


API 1000 G & 1020 G Series DC Input Alarms

The API 1000 G and API 1020 G are factory configured for either a DC voltage or current input and provide alarm contact outputs. Heavy duty relay contacts allow the module to directly control high capacity loads.
The API 1000 G provides a single setpoint adjustment and DPDT relay contacts. The alarm output can be factory configured for HI or LO operation, non-latching or latching, normal or reverse acting. Top-accessible potentiometers are used to adjust the alarm setpoint and deadband.
The API 1020 G contains two independent setpoints with two SPDT relay contact outputs. The alarm output can be factory configured for HI/HI, HI/LO, LO/HI or LO/LO operation, normal acting or reverse acting. Top-accessible potentiometers are used to adjust each alarm setpoint. Deadband is fixed at 1% of span. Adjustable deadbands are optional.



  • User adjustable setpoint(s)
  • 8 Amp contacts
  • Hot-swappable plug-in design
  • RepalcesAction AP 1000 and AP 1020
  • Input LoopTracker LED
  • Alarm status LEDs
  • Alarm options: LO, HI/HI, LO/LO
  • Optional reverse acting
  • Optional latching alarms
  • Output test button
  • Uses API-011 11-pin socket
  • 115 VAC powered
  • A230 option for 230 VAC
  • P option for 85-265 VAC, 60-300 VDC power
  • D option for 9-30 VDC power

Select & Configure Model
Base Model #PowerDescriptionSocketApprovalsNormally
In Stock
Configure Part #

API 1000 G115 VACDC input single alarm. Isolated input.API 011 or API 011 FSNoneInquire
API 1000 G A230230 VACDC input single alarm. Isolated input.API 011 or API 011 FSNoneInquire
API 1000 G D9-30 VDCDC input single alarm. Isolated input.API 011 or API 011 FSNoneInquire
API 1000 G P85-265 VAC, 60-300 VDCDC input single alarm. Isolated input.API 011 or API 011 FSNoneInquire
API 1020 G115 VACDC input single alarm. Isolated input.API 011 or API 011 FSNoneInquire
API 1020 G A230230 VACDC input single alarm. Isolated input.API 011 or API 011 FSNoneInquire
API 1020 G D9-30 VDCDC input single alarm. Isolated input.API 011 or API 011 FSNoneInquire
API 1020 G P85-265 VAC, 60-300 VDCDC input single alarm. Isolated input.API 011 or API 011 FSNoneInquire
