DM5000 Series Programmable Multi-transducers

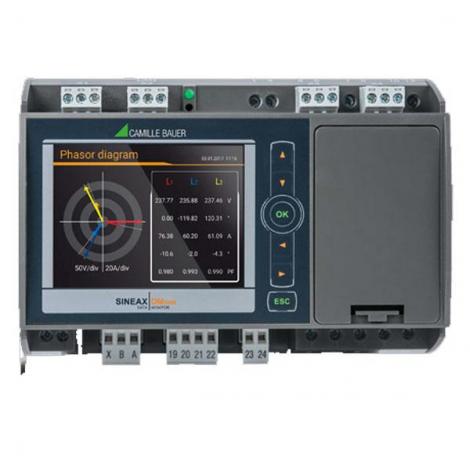

The SINEAX DM5000 is a compact instrument to measure and monitor in heavy current grids. It provides a wide range of functionalities which may even be extended by optional components. The connection of the process environment may be performed by communication interfaces, via digital I/Os, analog outputs or relays. The device may be completely adapted to the requirements on site either via webserver or the optional TFT display. A special software is neither needed for configuration nor for data visualization.

Functions

• Direct measurement up to 690V, CATIII
• Condition monitoring: class 0.1 (U/I), class 0.2% (P/Q/S)
• Energy consumption analysis, class 0.5S (meters, load profiles, trend analysis)
• Harmonic analysis acc. IEC 61000-4-7
• System imbalance monitoring
• Limit monitoring with alarming
• Universal process I/O
• Communication via Ethernet and Modbus/RTU
• Standard I/Os (1 digital input, 2 digital outputs)
