Fixed Range Round Temperature Transmitters
Minco TT176, TT246 RTD Transmitters

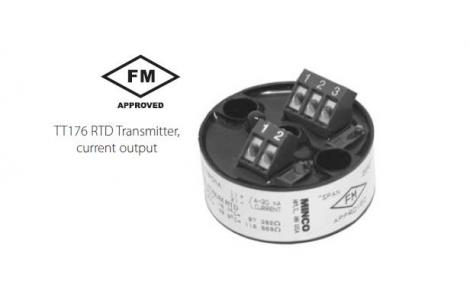

Specify these rugged, accurate transmitters for process control and other industrial applications. Model TT176 provides a linearized 4 to 20 mA current signal for long-distance transmission. It has a built-in LED indicator to monitor operation. TT246 outputs 1 to 5 VDC proportional to temperature. It draws only 3 mA of quiescent current, making it ideal for solar or battery powered systems.
• TT176: 4 to 20 mA current signal TT246: 1 to 5 VDC voltage signal
• 2 or 3-wire RTD input
• TT176: Factory Mutual (FM) approved intrinsically safe, nonincendive for hazardous locations
• Ambient rated to 85°C (185°F)
• Fits DIN “B” style connection heads
• Optional high-accuracy calibration to Minco RTDs for improved accuracy.
| Base Model # | Max Probe Dia. | Transmitter Type | Input/ Ouput Isolation | Approvals | Ambient Operating Temperature | Sensor Input Type | Normally In Stock | Add to Cart / Configure Part # |
| TT176 | .250" | Fixed Range Round | N/A | FM | -40 to 85°C -40 to 185°F | 2 or 3 wire RTD | Inquire | Configurator |
| TT246 | .250" | Fixed Range Round | N/A | N/A | -40 to 85°C -40 to 185°F | 2 or 3 wire RTD | Inquire | Configurator |
