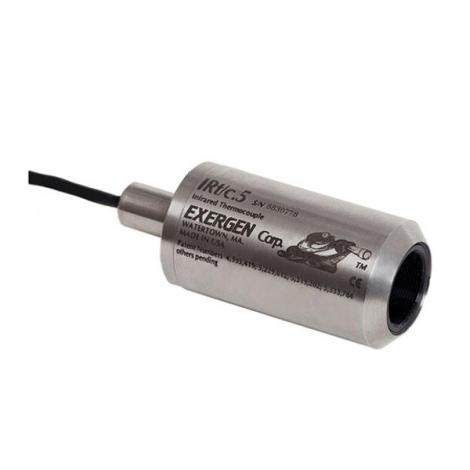

IRT/C.5 Infrared Temperature Sensors


IRT/C.5 Infrared Temperature Sensors

The IRt/c.5 features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02oF (0.01oC)
• Interchangeability ±1%
• Resolution approx. 0.0001oC
• Small Size


Select & Configure Model
Base Model #Target Surface type Sensing RangeMin. Spot SizeResponse TimeHousingNormally
In Stock
Add to Cart /
Configure Part #

IRt/c.5--50 to 1200F (-45 to 650C).8” (20mm)100 msStainless steel, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, cable shield grounded to housing and electrically isolated from signalInquireConfigurator
