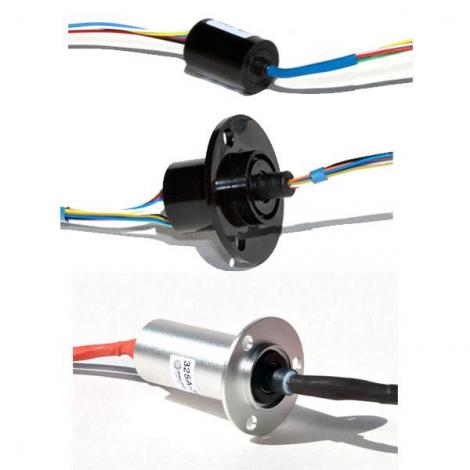

MTM 300 Series Miniature Slip Rings


Miniature Slip Rings MTM Series

Slip rings are commonly used to transfer electrical signals and power to a rotating shaft. The MTM series is ideally suited to applications where signals and power need to be transmitted in a compact space. By using a small rotor diameter, surface speeds are minimized. This allows for minimal imbalance which translates into long life. The use of gold on gold contacts assures long life, low noise, minimal interference between circuits, and low contact resistance. Slip rings can be ordered with low current signal circuits, high current power circuits, or a mix of the two. Configurations start at 2 circuits and extend through 56 circuits in the standard 300 series offering.


Select & Configure Model
Base Model #TerminalsVoltage AC/DCAmp Rating @240VACMax. RPMTemp Max. F (C) / Min. F (C)Rotation Torque (gm-cm)Normally
In Stock
Configure Part #

MTM3-2A-Mx-1230 - 2403@ 2A250-20 to +800C-Inquire
MTM6-2A-Mx-1260 - 2406@ 2A250-20 to +800C-Inquire
MTM12-2A-Mx-12120 - 24012@ 2A250-20 to +800C-Inquire
MTM18-2A-Mx-12180 - 24018@ 2A250-20 to +800C-Inquire
MTM6-2A-Mx-1860 - 2406@ 2A250-20 to +800C-Inquire
MTM12-2A-Mx-18120 - 24012@ 2A250-20 to +800C-Inquire
MTM14-2A-Mx-18140 - 24014@ 2A250-20 to +800C-Inquire
MTM18-2A-Mx-18180 - 24018@ 2A250-20 to +800C-Inquire
MTM6-2A-Mx-2260 - 2406@ 2A250-20 to +800C-Inquire
MTM12-2A-Mx-22120 - 24012@ 2A250-20 to +800C-Inquire
MTM4-2A/6A-MX-2240 - 2402@ 2A, 2@ 6A250-20 to +800C-Inquire
MTM18-2A-Mx-22180 - 24018@ 2A250-20 to +800C-Inquire
MTM3-10A-Mx-2230 - 2403@ 10A250-20 to +800C-Inquire
MTM24-2A-Mx-22240 - 24024@ 2A250-20 to +800C-Inquire
MTM12-2A/6A-Mx-22120 - 2408@ 2A, 4@ 6A250-20 to +800C-Inquire
MTM30-2A-M1-25300 - 24030@ 2A250-20 to +800C-Inquire
MTM22-2A/6A-M1-25220 - 24018@ 2A, 4@ 6A250-20 to +800C-Inquire
MTM18-2A/10A-M1-25180 - 24015@ 2A , 3@ 10A250-20 to +800C-Inquire
MTM36-2A-M1-25360 - 24036@ 2A250-20 to +800C-Inquire
MTM20-2A/10A-M1-25200 - 24016@ 2A, 4@ 10A250-20 to +800C-Inquire
MTM28-2A/6A-M1-25280 - 24024@ 2A, 4@ 6A250-20 to +800C-Inquire
MTM46-2A-M1-25460 - 24046@ 2A250-20 to +800C-Inquire
MTM56-2A-M1-25560 - 24056@ 2A250-20 to +800C-Inquire
MTM48-2A/6A-M1-25480 - 24044@ 2A, 4@ 6A250-20 to +800C-Inquire
MTM40-2A/10A-M1-25400 - 24036@ 2A, 4@ 10A250-20 to +800C-Inquire
