Programmable Round Temperature Transmitters
Programmable RTD & Thermocouple Temperature Transmitters

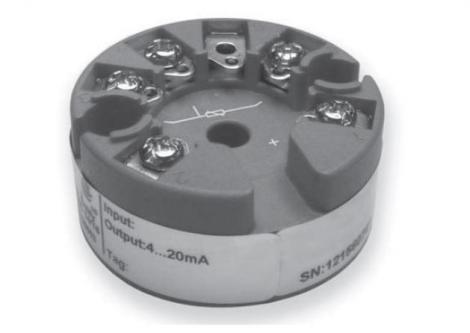

This range of transmitters amplifies a signal from an RTD or Thermocouple temperature sensor or, mV or linear resistance, and it turns the signal into a current which increases from 4 to 20 milliamperes as the temperature or input signal increases. This industry-standard 4-20mA signal travels thousands of feet over a pair of wires, ignoring electrical interference and bringing the temperature, accurately, into your computer or controller. Drawing power directly from the signal line, only 2 wires are needed for power and signal.
• RTD, Thermocouple, mV or Ohm input
• Accurate, Stable 4–20mA Output
• PC and field-programmable
• FM Approved Intrinsically Safe models
Select & Configure Model
| Base Model # | Max Probe Dia. | Transmitter Type | Input/ Ouput Isolation | Approvals | Ambient Operating Temperature | Sensor Input Type | Normally In Stock | Add to Cart / Configure Part # |
| TT508 | .250" | Prgrammable Round | N/A | N/A | -40 to 85°C -40 to 185°F | 2 or 3 wire RTD | Inquire | Configurator |
| TT518 | .236" | Prgrammable Round | N/A | FM, CSA ATEX IECEx TR CU (EAC) | -40 to 85°C -40 to 185°F | 2 or 3 wire RTD | Inquire | Configurator |
| TT509 | .250" | Programmable Round - Isolated | 1500V | N/A | -40 to 85°C -40 to 185°F | 2 wire Thermcouple or mV | Inquire | Configurator |
| TT519 | .236" | Programmable Round - Isolated | 1500V | FM, CSA ATEX IECEx TR CU (EAC) | -40 to 85°C -40 to 185°F | 2 wire Thermcouple or mV | Inquire | Configurator |
| TT510 | .250" | Programmable Round - Isolated | 1500V | N/A | -40 to 85°C -40 to 185°F | 2 or 3 wire RTD | Inquire | Configurator |
| TT520 | .236" | Programmable Round - Isolated | 1500V | FM, CSA ATEX IECEx TR CU (EAC) | -40 to 85°C -40 to 185°F | 2 or 3 wire RTD Thermcouple mV | Inquire | Configurator |
| TT511 | .250" | HART Programmable Round - Isolated | 1500V | N/A | -40 to 85°C -40 to 185°F | 2 or 3 wire RTD Thermcouple mV | Inquire | Configurator |
| TT521 | .236" | HART Programmable Round - Isolated | 1500V | FM, CSA ATEX IECEx TR CU (EAC) | -40 to 85°C -40 to 185°F | 2 or 3 wire RTD Thermcouple mV | Inquire | Configurator |
