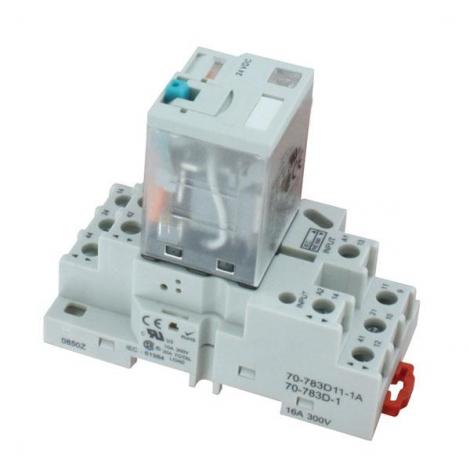

Series 783 & 784 Ice Cube Relays
Ice Cube Relays 3PDT or 4PDT Operation
The Series 783 & 784 Ice Cube Relays are full-featured relays that can be used to handle loads up to 15 amps for AC or DC circuits. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color coded and a removable lock-down lever holds the test button in place
Select & Configure Model
Base Model # | Description | Normally In Stock | Configure Part # |
783XCXM4L-120A | 3PDT ice cube relays, 15 amp rating, 120 VAC 50/60 Hz, coil resistance 2770Ω | Inquire | |
783XCXM4L-24A | 3PDT ice cube relays, 15 amp rating, 24 VAC 50/60 Hz, coil resistance 103Ω | Inquire | |
783XCXM4L-24D | 3PDT ice cube relays, 15 amp rating, 24 VDC, coil resistance 400Ω | Inquire | |
784XDXM4L-120A | 4PDT ice cube relays, 15 amp rating, 120 VAC 50/60 Hz, coil resistance 2220Ω | Inquire | |
784XDXM4L-24A | 4PDT ice cube relays, 15 amp rating, 24 VAC 50/60 Hz, coil resistance 84.5Ω | Inquire | |
784XDXM4L-24D | 4PDT ice cube relays, 15 amp rating, 24 VDC 50/60 Hz, coil resistance 388Ω | Inquire |
