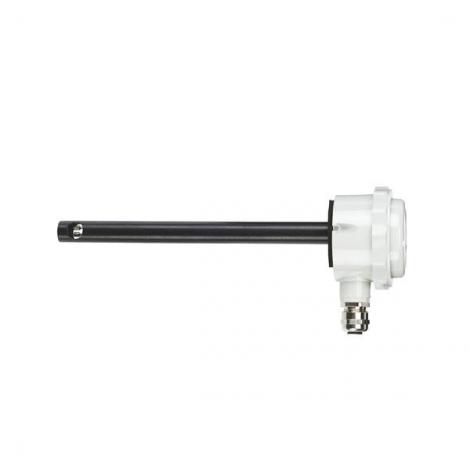

Series AVU Air Velocity Transmitter


Ideal for Building Automation Systems, ±5% or ±8% Full Scale Accuracy

The SERIES AVU Air Velocity Transmitter is ideal for a wide range of HVAC measurement and control applications, particularly in complete building control and energy management systems. The Series AVU Transmitter operates by measuring the heat loss from one of the two sensing elements in the air stream, then calculating the air velocity. Units are virtually immune to drift due to the design of the sensing element, which makes the transmitter accurate over the whole air velocity range.


Select & Configure Model
Base Model #DescriptionNormally
In Stock
Configure Part #

AVU-1-AAir velocity transmitter, range 0-785 FPM (0-4 m/s), 4-20 mA output.Inquire
AVU-1-VAir velocity transmitter, range 0-785 FPM (0-4 m/s), 0-10 VDC output.Inquire
AVU-2-AAir velocity transmitter, range 0-1575 FPM (0-8 m/s), 4-20 mA output.Inquire
AVU-2-VAir velocity transmitter, range 0-1575 FPM (0-8 m/s), 0-10 VDC output.Inquire
AVU-3-AAir velocity transmitter, range 0-3150 FPM (0-16 m/s), 4-20 mA output.Inquire
AVU-3-VAir velocity transmitter, range 0-3150 FPM (0-16 m/s), 0-10 VDC output.Inquire
AVUB-1-VAir velocity transmitter, 0-785 fpm (0-4 m/s) with 0-10 VDC output.Inquire
AVUB-2-VAir velocity transmitter, 0-1575 fpm (0-8 m/s) with 0-10 VDC output.Inquire
AVUB-3-VAir velocity transmitter, 0-3150 fpm (0-16 m/s) with 0-10 VDC output.Inquire
