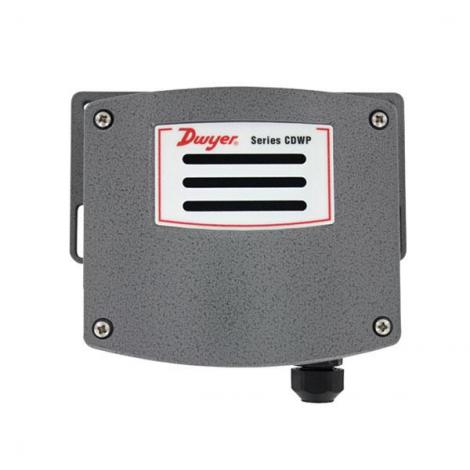

Series CDWP Carbon Dioxide Transmitter
NDIR CO2 Sensor with Universal Outputs in an Industrial Housing
The Series CDWP Carbon Dioxide Transmitter accurately monitors the CO2 concentration in industrial and indoor environments to help achieve energy savings. For increased sensor life and accuracy, a single-beam dual-wavelength non-dispersive infrared (NDIR) sensor is used to eliminate light source aging effects. This sensing technology provides the highest level of accuracy compared to Automatic Baseline Correction methods, which can unintentionally shift the calibration based on CO2 levels and barometric pressure conditions.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| CDWP-05H-C1 | Industrial CO2 Transmitter, 0-5000 PPM range, hang mount, with 1-6 mm cable gland | Inquire | |
| CDWP-05H-C5 | Industrial CO2 Transmitter, 0-5000 PPM range, hang mount, with 5-10 mm cable gland | Inquire | |
| CDWP-05W-C1 | Industrial CO2 Transmitter, 0-5000 PPM range, wall mount, with 1-6 mm cable gland | Inquire | |
| CDWP-05W-C5 | Industrial CO2 Transmitter, 0-5000 PPM range, wall mount, with 5-10 mm cable gland | Inquire | |
| CDWP-10H-C1 | Industrial CO2 Transmitter, 0-10,000 PPM range, hang mount, with 1-6 mm cable gland | Inquire | |
| CDWP-10H-C5 | Industrial CO2 Transmitter, 0-10,000 PPM range, hang mount, with 5-10 mm cable gland | Inquire | |
| CDWP-10W-C1 | Industrial CO2 Transmitter, 0-10,000 PPM range, wall mount, with 1-6 mm cable gland | Inquire | |
| CDWP-10W-C5 | Industrial CO2 Transmitter, 0-10,000 PPM range, wall mount, with 5-10 mm cable gland | Inquire |
