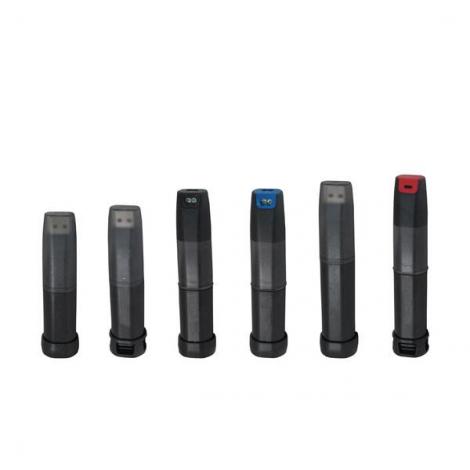

Series DW-USB Compact USB Data Logger
Measure Temperature, Humidity, Dew Point, Current, Voltage, or Carbon Monoxide
The Series DW-USB Compact USB Data Logger allows users to monitor temperature, humidity, dew point, voltage, current, or carbon monoxide almost anywhere, and then download stored data by simply plugging the module directly into a PC’s USB port. The compact housing can resist moisture up to IP67 when the protective cap is attached, and has built in LED’s to indicate an alarm has been met or the battery is low. Users can set the sampling rate, start time, high/low alarms, and temperature unit via software available for free download from our website.
Select & Configure Model
| Base Model # | Accuracy | Sampling Rates | Range | Power Requirements | Approvals | Normally In Stock | Configure Part # |
| DW-USB-1 | ±2°F (±1°C) | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | -31 to 176°F (-35 to 80°C) | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-2 | ±4°F (2°C), ±3% RH from 20 to 80% RH, ±5% RH | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | -31 to 176°F (-35 to 80°C), 0 to 100% RH | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-2-HA | ±3°F (1.5 °C), ±2% RH from 20 to 80% RH, ±4% RH | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | -31 to 176°F (-35 to 80°C), 0 to 100% RH | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-3 | ±1% | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | 0 to 30 VDC | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-4 | ±1% | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | 4 to 20 mA | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-5 | ±6% of reading | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | 0 to 1000 ppm | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-5-LR | ±4% of reading | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | 0 to 300 ppm | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-6 | ±2°F (1°C) (for data logger only) | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | 32 to 752°F (0 to 400°C) | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-1-LCD | ±3°F (1.5°C) | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | -31 to 176°F (-30 to 80°C) | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-2-LCD | ±4°F (2°C), ±3% RH from 20 to 80% RH, ±5% RH | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | -31 to 176°F (-35 to 80°C), 0 to 100% RH | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-2-HA-LCD | ±3°F (1.5 °C), ±2% RH from 20 to 80% RH, ±4% RH | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | -31 to 176°F (-35 to 80°C), 0 to 100% RH | 3.6 V 1/2 AA lithium metal battery | CE | Inquire | |
| DW-USB-6-LCD | ±2°F (1°C) (for data logger only) | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). | 32 to 752°F (0 to 400°C) | 3.6 V 1/2 AA lithium metal battery | CE | Inquire |
