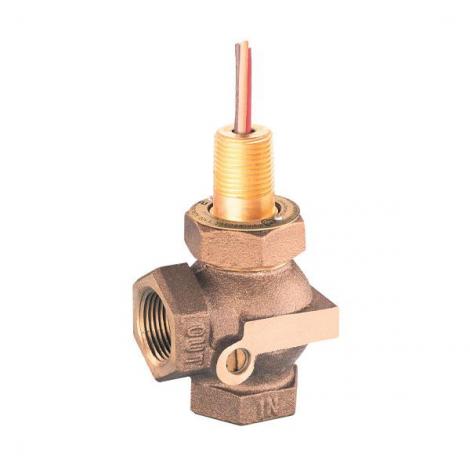

Series G9 Globe Flow Switch
Adjustable Set Point, Water or Oil Service, 90° Flow Path
The Series G9 Globe Flow Switch provides accurate flow detection in water and oil with ±1% repeatability. A shuttle by-pass vane inside the housing is controlled externally using an ordinary flat blade screwdriver, allowing flow settings to be changed without disassembly. Each switch is constructed of non-corrosive materials and resists shock and vibration. The Series G9 is suitable for triggering alarms on interlocking shutdown circuitry when flow rate is incorrect and for protecting bearings, gears, and cooling systems.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| G9-21 | Globe flow switch, actuation set point 0.75-4.0 GPM (2.8-15.1 LPM). | Inquire | |
| G9-22 | Globe flow switch, actuation set point 2.0-8.0 GPM (7.6-30.3 LPM). | Inquire | |
| G9-23 | Globe flow switch, actuation set point 7.0-14.0 GPM (26.5-53.0 LPM). | Inquire |
