Series P3 Polypropylene Flow Switch
Fixed Set Points from 0.25 to 2.0 GPM, 3/8” NPT

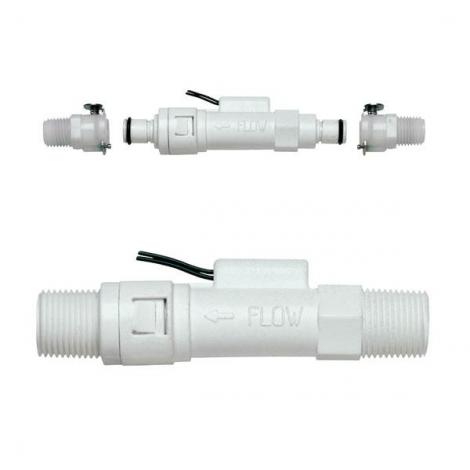

The Series P3 Polypropylene Flow Switches fit almost any piping requirements with compatible liquids. Choose the inlet and outlet port to be 3/8˝ male NPT or 1/4˝ male “Quick Disconnect” then select a quick disconnect acetal adapter for straight through flow or with a shut off valve.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| P3-31 | Polypropylene flow switch, actuation set point 0.25 GPM (.95 LPM), 3/8" NPT. | Inquire | |
| P3-32 | Polypropylene flow switch, actuation set point 0.50 GPM (1.89 LPM), 3/8" NPT. | Inquire | |
| P3-33 | Polypropylene flow switch, actuation set point 1.0 GPM (3.79 LPM), 3/8" NPT. | Inquire | |
| P3-34 | Polypropylene flow switch, actuation set point 1.5 GPM (5.68 LPM), 3/8" NPT. | Inquire | |
| P3-35 | Polypropylene flow switch, actuation set point 2.0 GPM (7.57 LPM), 3/8" NPT | Inquire | |
| P3-41 | Polypropylene flow switch, actuation set point 0.25 GPM (.95 LPM), Q disconnect. | Inquire | |
| P3-42 | Polypropylene flow switch, actuation set point 0.50 GPM (1.89 LPM), Q disconnect. | Inquire | |
| P3-43 | Polypropylene flow switch, actuation set point 1.0 GPM (3.79 LPM), Q disconnect. | Inquire | |
| P3-44 | Polypropylene flow switch, actuation set point 1.5 GPM (5.68 LPM), Q disconnect. | Inquire | |
| P3-45 | Polypropylene flow switch, actuation set point 2.0 GPM (7.57 LPM), Q disconnect. | Inquire |
