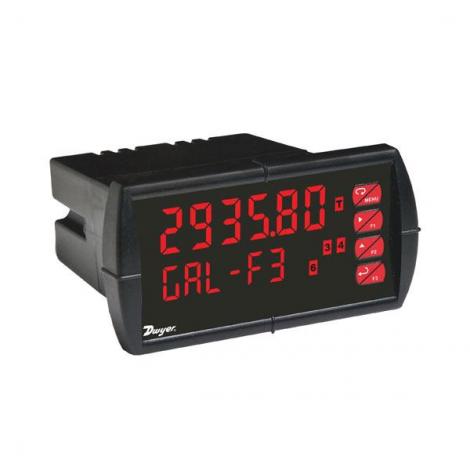

Series PPM Pulse Panel Meter


1/8 DIN Multi-Pump Alternation Control

The Series PPM has a unique, rugged, NEMA 4X front panel design that makes it nearly impenetrable in typical applications. The weatherproof, UV resistant, large, dual line display allows for more information, making it easier to read and simpler to program. The intensity of the display can be adjusted allowing this meter to be utilized in dark rooms as well as outdoors, due to its sunlight readable display. It features up to eight visual alarm set points to trigger certain events and three function keys which can be programmed to provide direct menu access. With up to four relays available, the PPM features latching, non-latching, sampling, pump alteration control, and a fail-safe action. Offering programmable delay time, this meter prevents recognition of false maximum or minimum reading which may be caused by the start-up or unusual process events. The PPM provides three security passwords that restrict modification of programmed settings. This unit has the ability to obtain non-linear input signals and linearize them with a general purpose 32-point linearizer. Choose from RS-232, RS-422/485 serial communication options or any available expansion modules, accessories, and enclosures.

The PPM displays flow rate and total simultaneously, with a programmable relay and 4 to 20 mA option for flow rate or flow total. The PPM is a 1/8 DIN digital panel meter specifically designed for displaying flow rate and total from a pulsed input provided by open collector, NPN, PNP, TTL, switch contact, sine wave, or square wave.


Select & Configure Model
Base Model #DescriptionNormally
In Stock
Configure Part #

PPM-100Pulse panel meter, 85-265 VAC, no relays, no transmitter.Inquire
PPM-101Pulse panel meter, 85-265 VAC, no relays, 4-20 mA transmitter.Inquire
PPM-120Pulse panel meter, 85-265 VAC, 2 relays, no transmitter.Inquire
PPM-121Pulse panel meter, 85-265 VAC, 2 relays, 4-20 mA transmitter.Inquire
PPM-140Pulse panel meter, 85-265 VAC, 4 relays, no transmitter.Inquire
PPM-141Pulse panel meter, 85-265 VAC, 4 relays, 4-20 mA transmitter.Inquire
PPM-200Pulse panel meter, 12-24 VDC, no relays, no transmitter.Inquire
PPM-201Pulse panel meter, 12-24 VDC, no relays, 4-20 mA transmitter.Inquire
PPM-220Pulse panel meter, 12-24 VDC, 2 relays, no transmitter.Inquire
PPM-221Pulse panel meter, 12-24 VDC, 2 relays, 4-20 mA transmitter.Inquire
PPM-240Pulse panel meter, 12-24 VDC, 4 relays, no transmitter.Inquire
PPM-241Pulse panel meter, 12-24 VDC, 4 relays, 4-20 mA transmitter.Inquire
