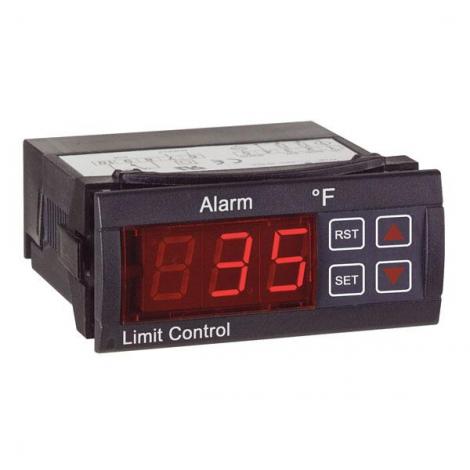

Series TSF Thermocouple Limit Control Temperature Switch
FM Approved Temperature Limit Control
The SERIES TSF Thermocouple FM Approved Limit Control provides audible alarm status along with a relay output. Unit allows the user to easily select automatic or manual reset via a built in reset button on the front panel or an external contact.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| TSF-4010 | Thermocouple limit control, type J/K/S input, 110 V, °F. | Inquire | |
| TSF-4011 | Thermocouple limit control, type J/K/S input, 110 V, °C. | Inquire | |
| TSF-4020 | Thermocouple limit control, type J/K/S input, 230 V, °F. | Inquire | |
| TSF-4021 | Thermocouple limit control, type J/K/S input, 230 V, °C. | Inquire | |
| TSF-4030 | Thermocouple limit control, type J/K/S input, 12 VAC/VDC, °F. | Inquire | |
| TSF-4031 | Thermocouple limit control, type J/K/S input, 12 VAC/VDC, °C. | Inquire | |
| TSF-4040 | Thermocouple limit control, type J/K/S input, 24 VAC/VDC, °F. | Inquire | |
| TSF-4041 | Thermocouple limit control, type J/K/S input, 24 VAC/VDC, °C. | Inquire |
