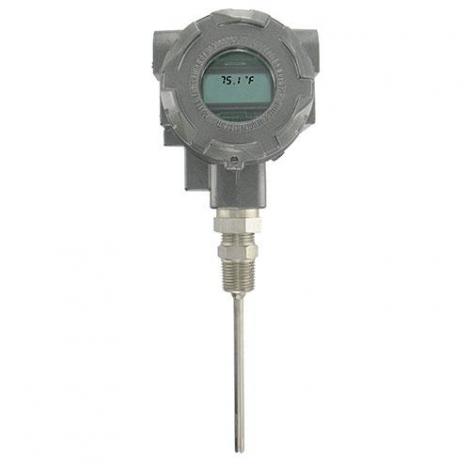

Series TTE Explosion-Proof RTD Temperature Transmitters

The Series TTE Explosion-Proof RTD Temperature Transmitter is the ideal product for hazardous temperature measurement applications. The TTE series has seven preprogrammed temperature ranges that are selectable via an internal dip switch. For those applications that need a custom range, the transmitter can be easily configured for any range between -30 to 250°F with a minimum span of 40°F. The span and zero can be quickly adjusted with a simple push button design. This unit has optional listings of FM for use in Class I, Division 1, Groups B, C and D, Class II, Division 1, Groups E, F and G and Class III atmospheres or ATEX (Directive 2014/34/EU) for II 2 G Ex db IIC T6...T4 Gb (-20°C = Ta = + 70°C), II 1 D Ex ta IIIC T111°C Da (-20°C = Ta = + 70°C) and IECEx for Ex db IIC T6...T4 Gb (-20°C = Ta = + 70°C), Ex ta IIIC T111°C Da (-20°C = Ta = + 70°C). The compact housing allows for the transmitter to be mounted in virtually any application.

• FM approved for Class I, Groups B, C, D; Class II, Groups E, F, G classified explosive environments
• Optional LCD
• Output span selected from seven common ranges or user determined
