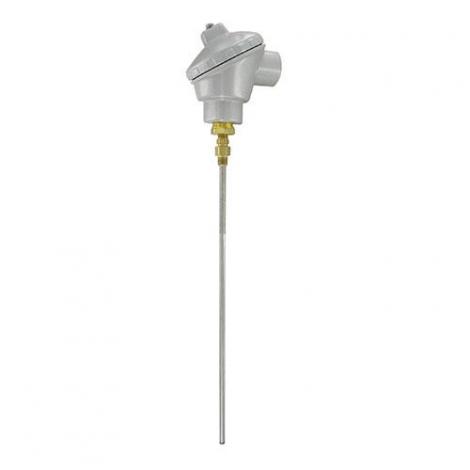

Series TTW Weatherproof Immersion Temperature Transmitters
Pt100 RTD, PC Programmable Transmitter
The SERIES TTW Immersion Temperature Transmitter combines three popular products into a single package. Our TBU series head mounted temperature transmitter is factory mounted into our A-709 enclosure. A Pt100 RTD version of our TE series is wired to the transmitter, giving insertion lengths up to 18". Each transmitter is factory programmed and calibrated to output a 4 to 20 mA signal proportional to the 32 to 212°F (0 to 100°C) temperature range.
- Preset to 32 to 212°F (0 to 100°C) output range
- USB port for easy output scale adjustment in the field
Select & Configure Model
Base Model # | Transmitter Type | Approvals | Ambient Operating Temperature | Sensor Input Type | Normally In Stock | Add to Cart / Configure Part # |
TTW-1 | Thread Mount | N/A | -40 to 85°C -40 to 185°F | RTD | Inquire | Configurator |
