SINEAX V610 Temperature Transmitters

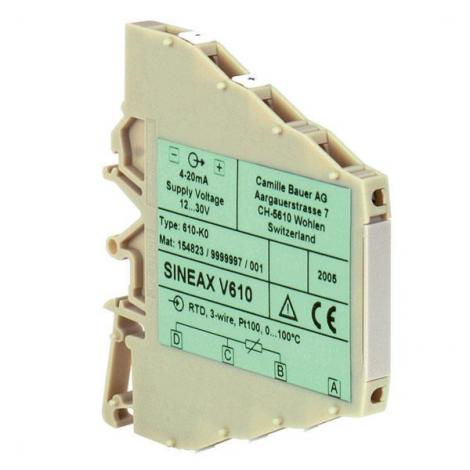

SINEAX V 610 Temperature Transmitter

SINEAX V 610 is a two-wire transmitter. It is designed for measuring temperature in combination with resistance thermometers Pt 100. Thermocouple non-linearities are automatically compensated.

The output signal is a current in the range 4 to …20 mA. The sensor circuit is monitored for open and short-circuits and the output responds in a defined manner if one is detected. The power supply (12 to 30 V DC) is connected together with the signal by the two leads connected to the measurement output (loop powered).

  • Two-wire transmitter for installation in the process environment
  • Open and short-circuit sensor circuit supervision / Defined output response should the supervision pick up
  • Compact design (housing only 7 mm wide) / Makes maximum use of available space.

Select & Configure Model
Base Model #Fixed Measuring RangeNormally
In Stock
Configure Part #

1548230 to 100 °CInquire
1548310 to 150 °CInquire
1548490 to 200 °CInquire
154857-30 to 70 °CInquire
154865-50 to 150 °CInquire
