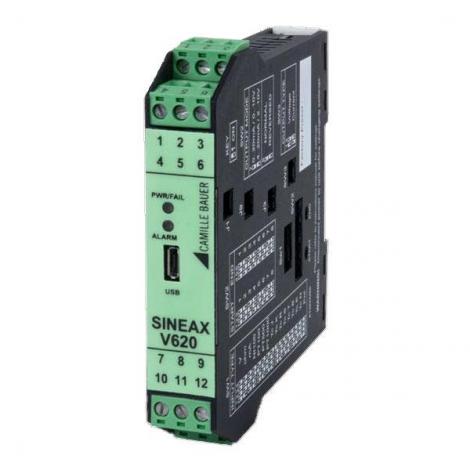

SINEAX V620 Temperature Transmitters
SINEAX V620 Universal Converter
• Input: Voltage, current, RTD, TC, NTC, potentiometer, rheostat
• Strobe: Input (control analog output)
• Output: Current, voltage, relay (SPST)
• Resolution: Programmable from 11 to 15 bit + sign
• Accuracy: 0.1%
• Response time: 35 ms (11 bit + sign)
• Isolation: 1.500 V AC at 3 ways
• Power supply: 10 … 40 V DC, 19 … 28 V AC General
Select & Configure Model
| Base Model # | Transmitter Type | Approvals | Ambient Operating Temperature | Sensor Input Type | Normally In Stock | Configure Part # |
| 176405 | Programmable DIN | CE | –25 to 55 °C | RTD Thermocouple DC Voltage DC Current | Inquire |
