SINEAX VS30 Temperature Transmitters

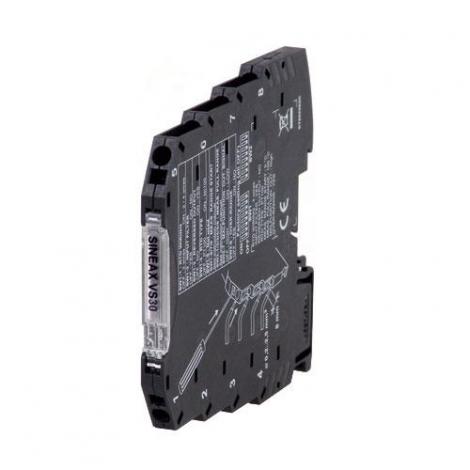

SINEAX VS30 Signal Converter
Signal Converter Pt100, Ni100 / loop-powered converter
- Input: Pt100 (- 200...+ 650 °C), Ni100 (- 60...+ 250 °C)
- Output: Current 4...20 or 20...4 mA
- Max. consumption 24 mA
- Measurement conversion 16 bit
- Power supply range 5...30 V DC (loop-powered)
- Small dimensions (6.2 x 93.1 x 102.5 mm)
- Accuracy class 0.1% or 0.1 °C
- Programming via dip-switch or software
Select & Configure Model
| Base Model # | Transmitter Type | Approvals | Ambient Operating Temperature | Sensor Input Type | Normally In Stock | Configure Part # |
| 162769 | Programmable DIN | CE | –25 to 55 °C | RTD | Inquire |
