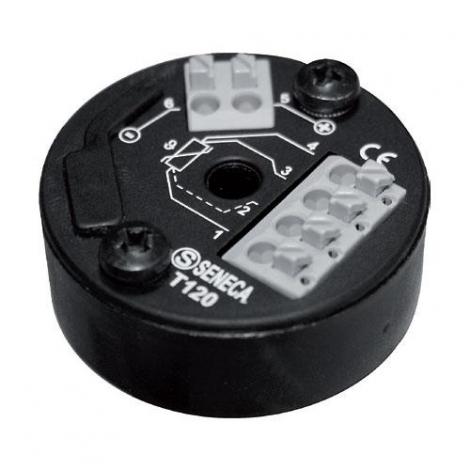

T120 Temperature Transmitters
Loop Powered Transmitter for Pt100 and Ni 100 Probes
T120 is a converter for Thermoresistance PT100/Ni100 with 2,3,4 wires and convert it into 4..20mA loop powered signal. It’s completely configurable through PC software. T120 is suitable for in-head mounting (Pt100). The output signal is not isolated from the input one.
- Order T120-C and specify I/O for pre-programmed model
- 44 mm dia
- EASY-USB configuration
- Low cost
- DIN B mount with 5.8 mm (0.228" dia) center hole
- Power: 19.2 to 30 VDC current loop
Select & Configure Model
| Base Model # | Power | Transmitter Type | Approvals | Ambient Operating Temperature | Sensor Input Type | Normally In Stock | Configure Part # |
| T120 | 19.2 to 30 VDC | Head Mount | CE | -40 to 85°C -40 to 185°F | RTD | Inquire |
