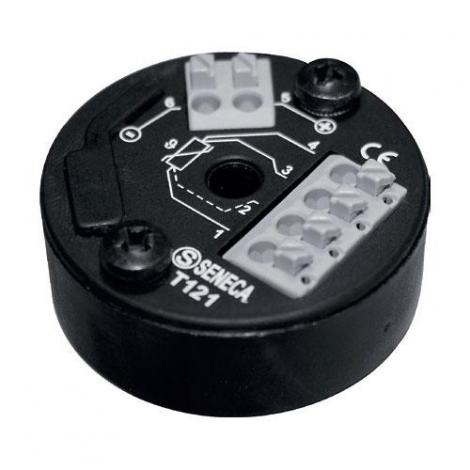

T121 Universal Input Temperature Transmitters


Isloated Loop Powered Temperature Transmitter

T121 is a converter for Thermoresistance (mA, mV, PT100, Pt1000, Pt500, Ni100, TCs, Ohm) with 2,3,4 wires and convert / isolate it into 4..20mA loop powered signal. It’s completely configurable through PC software. T121 is suitable for in-head mounting (RTD or TC). A 2-way galvanic isolation among input // output circuits assures the integrity of your datas.



  • Order T121-C for pre-programmed I/O
  • 44 mm dia
  • EASY-USB configuration
  • I/O isolation
  • Low cost
  • DIN B with 5.8mm (0.228"dia) center hole
  • Power: 7 to 30 VDC current loop

Select & Configure Model
Base Model #PowerTransmitter TypeApprovalsAmbient Operating TemperatureSensor Input Type Normally
In Stock
Configure Part #

T1217 to 30 VDC via current loopHead MountCE-40 to 85°C -40 to 185°FRTD
Thermocouple
DC Voltage
DC Current
Thermistor
Potentiometer
Inquire
