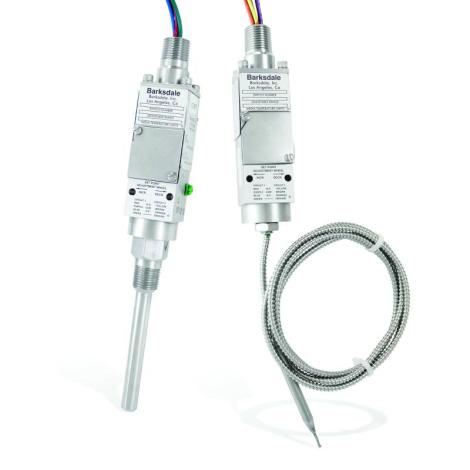

T9692X Compact Explosion-Proof Temperature Switches

Configuration and installation

Select circuit count, contact element, temperature range and sensing/capillary length. Local mount code -001 excludes armor option -A. Factory presets and extra lead lengths require a separate inquiry with the required dimensions and setpoint.

With EE contacts, the catalogue gives an approximate differential of 5 to 30°F (2.8 to 16.7°C). Do not apply this value automatically to GH contacts.

The current catalogue has an apparent typographical error in its accuracy line, so an accuracy value is not stated here pending confirmation. It also pairs 18 in free leads with an inconsistent metric value; the drawing shows 18 in. Confirm required lead length before ordering.

UL ambient limits differ from the CSA/ATEX limits. Use the rating, wiring and hazardous-location marking for the complete ordered model. Availability is by inquiry.
