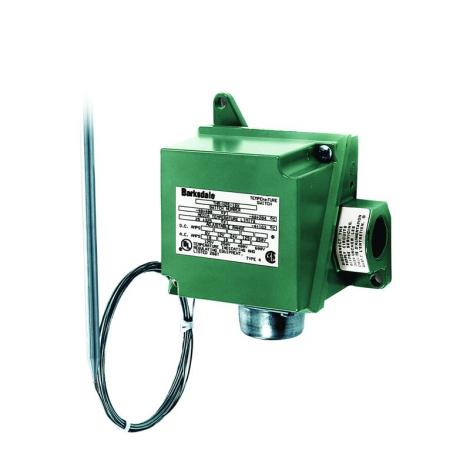

THR and THL temperature switches provide adjustable mechanical temperature control in a corrosion-resistant NEMA 4X enclosure. The THR uses a remote bulb with a 10 ft capillary for line sensing; the THL senses local ambient temperature.

Both standard models use SPDT snap-action contacts rated 22 A at 125/250/480 VAC. Their silicone oil-filled, stainless steel sensing systems suit heat tracing, HVAC and industrial process applications. Select the model for its specific adjustment and media temperature limits.

THR / THL Temperature Switches — Catalogue Temperature Switches — Supplemental Guide

Select & Configure Model

Base Model #	Sensing / Layout	Temperature Range / Setpoint	Outputs	Probe / Connection	Availability	Configure Part #

THR-L2S-10X-Q10	Remote line sensing	25 to 325°F (-4 to 163°C), adjustable	SPDT, 22 A at 125/250/480 VAC	10 ft capillary; NEMA 4X	Inquire	QTY Add to Cart
THL-L1S-X-Q10	Local ambient sensing	15 to 140°F (-9 to 60°C), adjustable	SPDT, 22 A at 125/250/480 VAC	Local sensor; NEMA 4X	Inquire	QTY Add to Cart

Temperature Range:

Adjustment: THR 25 to 325°F (-4 to 163°C); THL 15 to 140°F (-9 to 60°C).

Accuracy:

±1% of full scale.

Electrical Rating:

Standard contacts: 22 A at 125/250/480 VAC.

Housing:

Anodized die-cast aluminium with green polyurethane coating; other exposed parts stainless steel.

Length:

Bulb 7-3/4 in (197 mm), 5/16 in (8 mm) diameter; THR capillary 10 ft (3 m).

Conduit Connection:

3/4 NPT female.

Approvals:

UL file 56247; CSA file LR34555; CE indicated in the catalogue.

Operating Temperature:

Media: THR -40 to 420°F (-40 to 215°C); THL -40 to 160°F (-40 to 71°C).

Control action:

SPDT snap-action switch; approximate differential 10°F (5.6°C).

Enclosure Rating:

NEMA 4X.

Material:

316L stainless steel bulb and capillary; silicone oil fill.

Pressure Limit:

300 psi without a thermowell.

Electrical Connections:

3-pole terminal block, 14 to 10 AWG.

Net Weight:

Approximately 1.9 lb (0.9 kg).

Selection and ordering

The table lists the two standard complete part numbers. THR adjustment is 25 to 325°F (-4 to 163°C); THL adjustment is 15 to 140°F (-9 to 60°C). The approximate differential is 10°F (5.6°C).

The catalogue gives nominal factory settings of 125°F ±5°F on falling temperature for THR and 40°F ±4°F on falling temperature for THL. These factory settings do not replace the adjustable ranges.

Optional DPST relay versions require confirmation of coil voltage and whether contacts close on rising or falling temperature. Contact Mod-Tronic for these options, thermowells and application-specific installation requirements. Availability is by inquiry.
