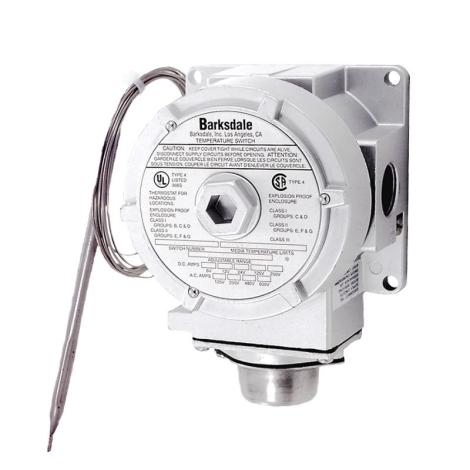

TXR and TXL temperature switches provide mechanical temperature control in hazardous industrial locations. The TXR uses a remote bulb and capillary; the TXL senses local ambient temperature. Both standard models have externally adjustable setpoints and SPDT snap-action contacts.

The silicone-filled sensing system and corrosion-resistant enclosure suit demanding process and freeze-protection applications. Select the model for its specific adjustment and media temperature limits. Contact Mod-Tronic to confirm approvals and suitability for your installation.

TXR / TXL Temperature Switches — Catalogue Temperature Switches — Supplemental Guide

Select & Configure Model

Base Model #	Sensing / Layout	Temperature Range / Setpoint	Outputs	Probe / Connection	Availability	Configure Part #

TXR-L2S-10-Q10	Remote bulb	25 to 325°F (-4 to 163°C), adjustable	SPDT, 22 A at 125/250/480 VAC	10 ft capillary; 3/4 NPT electrical	Inquire	QTY Add to Cart
TXL-L1S-Q10	Local ambient	15 to 140°F (-9 to 60°C), adjustable	SPDT, 22 A at 125/250/480 VAC	Local bulb; 3/4 NPT electrical	Inquire	QTY Add to Cart

Temperature Range:

Adjustment: TXR 25 to 325°F (-4 to 163°C); TXL 15 to 140°F (-9 to 60°C).

Ambient Temperature :

-40 to 140°F (-40 to 60°C).

Control action:

Adjustable mechanical SPDT; approximate differential 10°F (5.6°C).

Material:

316L stainless steel bulb; silicone fill.

Enclosure Rating:

NEMA 4, 7 and 9; IP66.

Electrical Connections:

3-pole terminal block; 16 to 10 AWG.

Length:

Bulb 8 in (203 mm), diameter 5/16 in (8 mm); TXR capillary 10 ft.

Net Weight:

Approximately 3.8 lb (1.7 kg).

Operating Temperature:

Media: TXR -40 to 420°F (-40 to 215°C); TXL -40 to 160°F (-40 to 71°C).

Accuracy:

±1% of full scale.

Electrical Rating:

Standard SPDT: 22 A at 125/250/480 VAC. Relay variant by inquiry.

Housing:

Anodized aluminium enclosure, silver paint.

Conduit Connection:

3/4 NPT female.

Pressure Limit:

300 psi without a thermowell.

Approvals:

FM, UL, CSA and ATEX listed in the catalogue. Confirm exact model and installation approval.

Selection and ordering

The table lists the two standard SPDT part numbers. A TXR-L2S-10R-Q10 relay version is available by inquiry. Its current catalogue gives conflicting 120 VAC and 240 VAC coil voltages; Mod-Tronic must confirm the required coil before ordering.

Use a suitable thermowell where process pressure or installation conditions require one. Do not exceed the model-specific media limits. Availability is by inquiry.
