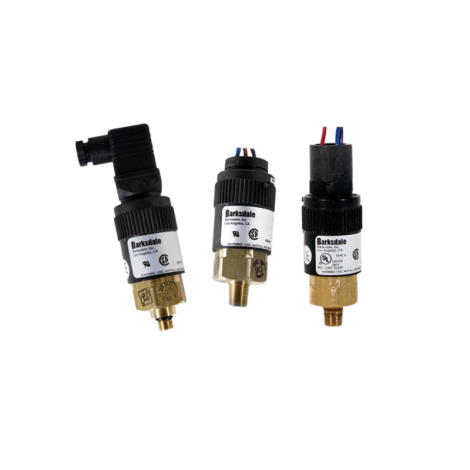

96201 / 96211 / 96221 Compact Pressure Switches
Compact SPDT switches for vacuum, low pressure and high pressure up to 7500 psi, with external setpoint adjustment and optional DIN or conduit connections.
Barksdale 96201, 96211 and 96221 compact pressure switches combine a single SPDT snap-action switch with an externally adjustable setpoint. Choose 96201 for high pressure, 96211 for lower pressure, or 96221 for vacuum. Range-specific deadband and proof ratings are detailed in the catalog.
- Accuracy: ±2% of full range.
- Standard brass 1/4-inch NPT male fitting and Buna-N seals; optional Viton seals.
- Standard -BB switch: 5 A at 125/250 VAC; 5 A at 30 VDC has no agency rating.
- 12-inch free leads standard; DIN 43650A and male or female conduit connectors available.
- NEMA 1 standard; NEMA 4 with -T4 or -T5; IP65 with -T2 DIN connector.
- UL recognized component standard; UL listed with -T4 or -T5. CSA file LR22355. Approval coverage depends on selected construction.
The configurators cover the field-adjustable base models below. For factory-set, permanently locked L-prefix models, tamper-resistant T-prefix models, a factory preset or custom lead length, contact Mod-Tronic with the required setpoint and direction of operation. Viton seals are not available with the -T2 DIN connector.
| Base Model # | Pressure Range | Contact Style | Reset Style | Fitting | Normally In Stock | Add to Cart / Configure Part # |
| 96201 | 250–7500 psi increasing; range dependent | Single SPDT | Automatic | 1/4-inch NPT male standard | Inquire | Configurator |
| 96211 | 3–500 psi increasing; range dependent | Single SPDT | Automatic | 1/4-inch NPT male standard | Inquire | Configurator |
| 96221 | 6–30 inHg vacuum increasing; 1–28 inHg decreasing | Single SPDT | Automatic | 1/4-inch NPT male standard | Inquire | Configurator |
