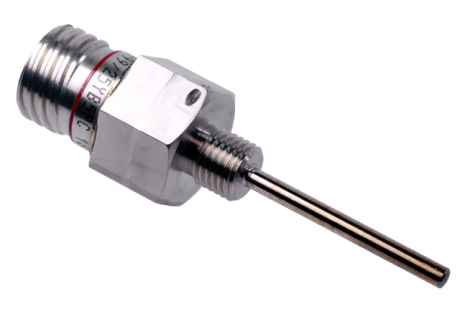

Minco S239610 RTD and TS239620 thermistor probes provide fast temperature sensing for aircraft environmental systems and fluid-temperature measurements. Both use AISI 304/304L external surfaces, a fully hermetic construction and a MIL-DTL-38999 connector.

S239610 RTD: platinum sensing, -55 to 300°C continuous operation; short-duration excursions up to 500°C are described in the manufacturer’s datasheet.
TS239620 thermistor: 10,000-ohm sensing, -55 to 260°C continuous operation, with frequent excursions to 300°C.
Manufacturer-qualified to the RTCA DO-160G categories listed for each model; see Specifications for qualification notes.

Request either fixed model number below. For application-specific element arrangements or custom requirements, contact Mod-Tronic.

Read our article on choosing Minco aerospace temperature probes.

Minco Aerospace Temperature Sensors — S239610 RTD and TS239620 Thermistor Datasheet

Select & Configure Model

Base Model #	Sensing Element or Junction Type	Probe Diameter	# of Elements or # of Junctions	Temperature Range	Normally In Stock	Configure Part #

S239610	Platinum RTD (IEC 60751 Class A/B)	0.148 in (3.76 mm)	Single and Dual	-55 to 300°C (-67 to 572°F)	Inquire	QTY Add to Cart
TS239620	Thermistor, 10,000 Ω ±1% at 25°C	0.126 in (3.20 mm)	Single and Dual	-55 to 260°C (-67 to 500°F)	Inquire	QTY Add to Cart

Temperature Range:

S239610: -55 to 300°C continuous; short excursions up to 500°C.
TS239620: -55 to 260°C continuous; frequent excursions to 300°C.
Excursions are not continuous-use ratings.

Case Material:

AISI 304/304L on all external surfaces.

Connector:

MIL-DTL-38999, shell size 11; connector D38999/25YB5PC is listed in the manufacturer’s datasheet.

Weight:

S239610: 53 g ±10%.
TS239620: 65 g ±10%.

Agency Approvals:

RTCA DO-160G, model-specific categories. Temperature/altitude: S239610 D3; TS239620 D2. Sections 16-21 require system-level review and are omitted; 23/25 are N/A. See the local datasheet for full categories.

Sensing Element:

S239610: IEC 60751 Class A/B platinum RTD; 100, 500 or 1000 ohm variants at 0°C.
TS239620: 10,000 ohm ±1% at 25°C; BETA 25-85 = 3976 K ±2%.

Environmental:

Fully hermetic construction for both models.

Response Time:

S239610: 1 second.
TS239620: less than 1 second.
Conditions: τ0.632 in water flowing at 1 m/s. Typical part-to-part response-time variation: 0.2 second (sigma).

Self-heating:

In still air: S239610, 0.195°C/mW (dissipation constant 5.1 mW/°C); TS239620, 0.370°C/mW (dissipation constant 2.7 mW/°C).

Model Selection

S239610 is the RTD probe; TS239620 is the thermistor probe. The two model numbers are listed directly for quotation. Choose the sensing technology appropriate to your application and request a quotation.

Qualification and Application Review

The manufacturer provides model-specific RTCA DO-160G qualification categories. Sections 16–21 are omitted from the qualification tables because they require consideration with other system components; sections 23 and 25 are listed as not applicable. Review the detailed qualification tables and dimensional drawings in the locally hosted datasheet for the intended installation.

Excursion temperatures are separate from continuous-use ratings. Custom single/dual element arrangements and element characteristics should be confirmed with Mod-Tronic for the application.
