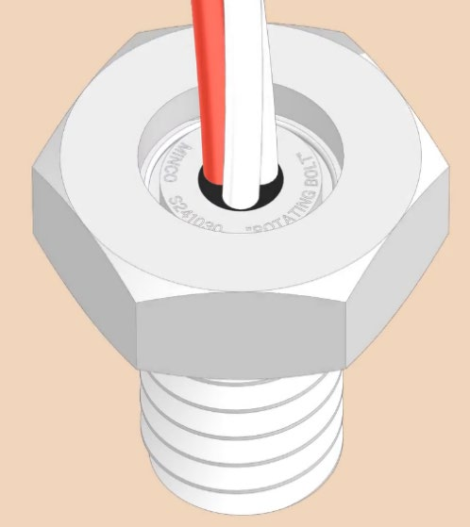

Rotating Bolt Temperature Sensors
Bolt-on RTDs with a Swivelling Leadwire Assembly
Minco S241030–S241033 rotating bolt temperature sensors simplify surface-temperature measurements on engines, compressors, generators and industrial machinery. The cable rotates independently inside the stainless-steel housing, reducing wire twisting and strain while the bolt is tightened in confined installations.
- Imperial 1/4-20 or metric M6 x 1 mounting threads.
- Nickel 100-ohm or platinum 100/1000-ohm RTD elements.
- Two, three or four leads with PTFE, stainless-steel braid and FEP cable options.
- Standard models S241030/S241031 and Ex-certified models S241032/S241033.
Operating temperature depends on the selected model, element and cable. Elastomer-filled E cable is limited to 125°C and 144 inches. Choose the required cable family in the model table; see Specifications for the complete limits. Feedthroughs and custom terminations are available by inquiry.
Read our article: Minco Rotating Bolt RTDs — Easier Installation Without Twisted Leadwires.
Select & Configure Model
| Base Model # | Temperature Range | Sensing Element or Junction Type | Case Material | Normally In Stock | Add to Cart / Configure Part # |
| S241030 | -50 to 260°C (-58 to 500°F) | Select in Configurator | Stainless steel 1/4-20; standard T / S / F / R cable | Inquire | Configurator |
| S241030 | -50 to 125°C (-58 to 257°F) | Select in Configurator | Stainless steel 1/4-20; standard E cable: elastomer fill, 144 in max | Inquire | Configurator |
| S241031 | -50 to 260°C (-58 to 500°F) | Select in Configurator | Stainless steel M6 x 1; standard T / S / F / R cable | Inquire | Configurator |
| S241031 | -50 to 125°C (-58 to 257°F) | Select in Configurator | Stainless steel M6 x 1; standard E cable: elastomer fill, 144 in max | Inquire | Configurator |
| S241032 | -50 to 200°C (-58 to 392°F) | Select in Configurator | Stainless steel 1/4-20; Ex certified T / S / F / R cable | Inquire | Configurator |
| S241032 | -50 to 125°C (-58 to 257°F) | Select in Configurator | Stainless steel 1/4-20; Ex certified E cable: elastomer fill, 144 in max | Inquire | Configurator |
| S241033 | -50 to 200°C (-58 to 392°F) | Select in Configurator | Stainless steel M6 x 1; Ex certified T / S / F / R cable | Inquire | Configurator |
| S241033 | -50 to 125°C (-58 to 257°F) | Select in Configurator | Stainless steel M6 x 1; Ex certified E cable: elastomer fill, 144 in max | Inquire | Configurator |
