Series 3200G Explosion-proof Pressure Transmitter
Explosion-Proof Pressure Transmitter

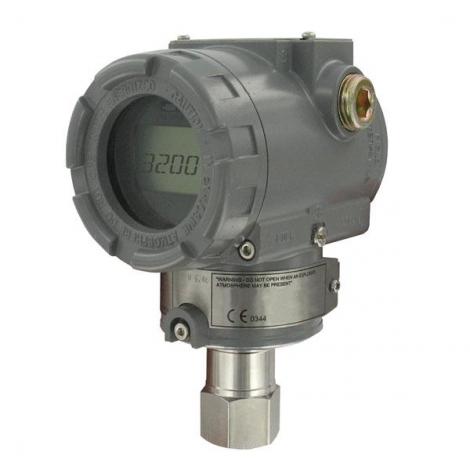

The Mercoid Series 3200G Explosion-Proof Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication.The Series 3200G is capable of being configured with the zero and span buttons, a field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3200G is FM approved for use in hazardous (Classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.
Base Model # | Accuracy | Range | Housing Type | Output Signal | Normally In Stock | Add to Cart / Configure Part # |
3200G- | ±0.075% FS | -14.5 - 8500 psi | NEMA 4X (IP66) and explosion proof for Class I, Div I Groups A, B, C and D | 4 to 20 mA / HART® Communication | Inquire | Configurator |
