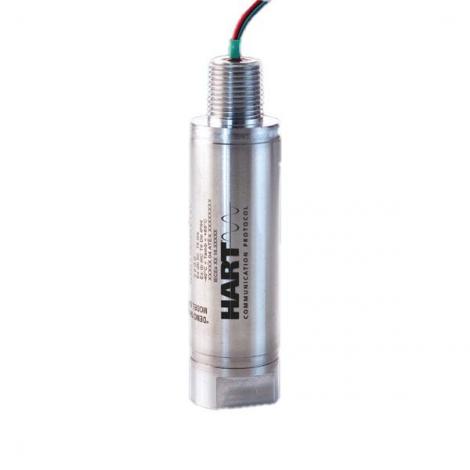

Series 450X Pressure Transmitter
Series H455X, 455X, 452X
- Lightweight, compact and all-welded rugged stainless steel construction.
- Thin-film & diffused silicon sensors for high accuracy.
- Optional HART® communication protocol with diagnostics & field calibration, reducing maintenance time and cost; and 10:1 turndown ratio for re-ranging, maintaining high accuracy and allowing one part number for multiple pressure ranges.
- High accuracy down to 0.1% FSO, (including L,H,R).
- cULus, ATEX, IECEx and Single Seal certifications.
- Explosion proof enclosure with IP66 & IP67 and NEMA 4X, 7 & 9 ratings.
- CE, CRN, and NACE compliant and superior EMI/EMC protection.
- Factory sealed, environment friendly, halogen free wires and cable.
- RoHS & REACH Compliant.
Select & Configure Model
| Base Model # | Accuracy | Range | Housing Type | Output Signal | Normally In Stock | Add to Cart / Configure Part # |
| H455X | ±0.1% and 0.25% FSO | 2X range for up to 7500 psi models 1.5X range for 7500 - 30000 psi models | All Welded 300 Series Stainless Steel | 4 - 20 mA Output with HART® Comm. Protocol | Inquire | Configurator |
| 455X | ±0.1% and 0.25% FSO | 2X range for up to 7500 psi models 1.5X range for 7500 - 30000 psi models | All Welded 300 Series Stainless Steel | 4 - 20 mA Output | Inquire | Configurator |
| 452X | ±0.1% and 0.25% FSO | 2X range for up to 7500 psi models 1.5X range for 7500 - 30000 psi models | All Welded 300 Series Stainless Steel | 1-5 VDC Output | Inquire | Configurator |
