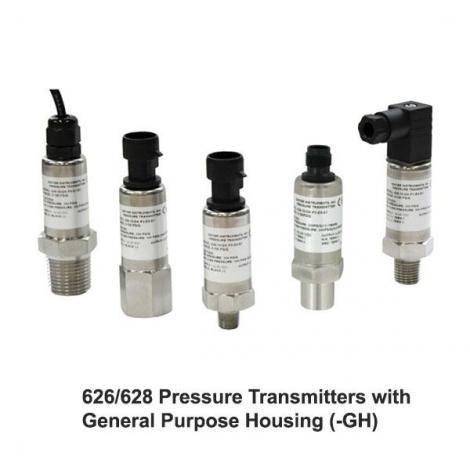

Series 626 & 628 Industrial Pressure Transmitter
Industrial Pressure Transmitters
The Series 626 Industrial Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
| Base Model # | Accuracy | Range | Housing Type | Output Signal | Normally In Stock | Add to Cart / Configure Part # |
| 626- | 0.25% full scale accuracy | 0 to 8000 psi | Conduit box housing & General purpose housing | 4 to 20 mA , 0 - 10 VDC | Inquire | Configurator |
| 628- | 1.0% full scale accuracy | 0 to 8000 psi | Conduit box housing & General purpose housing | 4 to 20 mA , 0 - 10 VDC | Inquire | Configurator |
