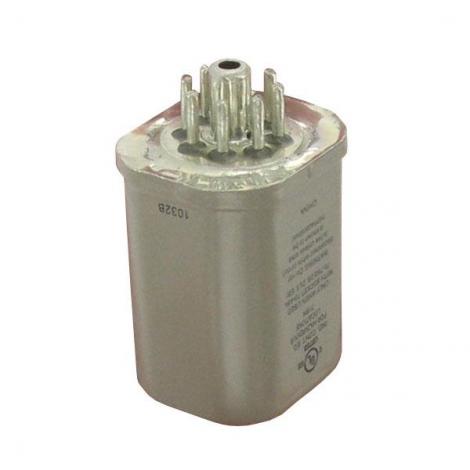

Series 750H Hermetically Sealed Relay


Hermetically Sealed Relay
12 Amp, DPDT Operation (8-pin) or 3PDT Operation (11-pin)

The Series 750H Hermetically Sealed Electromechanical Relay is designed to be used in Class I Division 2 hazardous area locations. Gold flashed contacts provide protection against oxidation in low current / voltage applications. 8-pin and 11-pin sockets are available to allow quick and easy installation for both surface and DIN rail mounting.


Select & Configure Model
Base Model #DescriptionNormally
In Stock
Configure Part #

750XBXH-120A8-pin/DPDT, input voltage 120 VAC 50/60 Hz, coil resistance 1700 ohms, 12 amp rating, plug-inInquire
750XBXH-24A8-pin/DPDT, input voltage 24 VAC 50/60 Hz, coil resistance 72 ohms, 12 amp rating, plug-inInquire
750XCXH-120A11-pin/3PDT, input voltage 120 VAC 50/60 Hz, coil resistance 1700 ohms, 12 amp rating, plug-inInquire
750XCXH-24A11-pin/3PDT, input voltage 24 VAC 50/60 Hz, coil resistance 72 ohms, 12 amp rating, plug-inInquire
