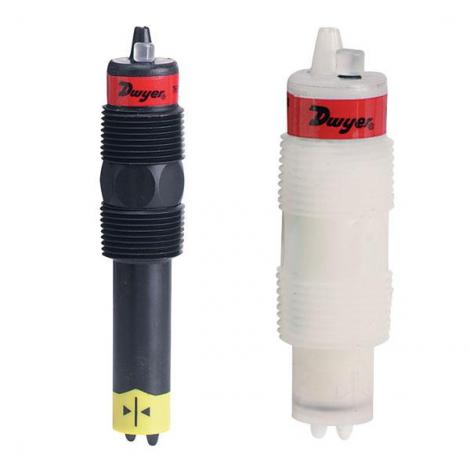

Series TDS Thermal Dispersion Flow Switch
Adjustable Switch Point, LED Indication
The Series TDS Thermal Dispersion Flow Switch offers solid state flow detection of non-coating liquids for pump and process protection. SPDT output allows for interfacing with remote PLC or relay control device. The adjustable switch point is factory calibrated at 0.2 fps with LED indication of flow and calibration status. Units feature selectable NO or NC operation and are not damaged by overranging flow velocities.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| TDS112 | Thermal dispersion flow switch, PP/PPS wetted parts, 3.0" (7.6 cm) length. | Inquire | |
| TDS122 | Thermal dispersion flow switch, PP/PPS wetted parts, 4.5" (11.4 cm) length. | Inquire | |
| TDS212 | Thermal dispersion flow switch, PVDF wetted parts, 3.0" (7.6 cm) length. | Inquire | |
| TDS222 | Thermal dispersion flow switch, PVDF wetted parts, 4.5" (11.4 cm) length. | Inquire |
