Stator Winding Thermocouple Sensors
Minco Stator Winding Thermocouple Sensors

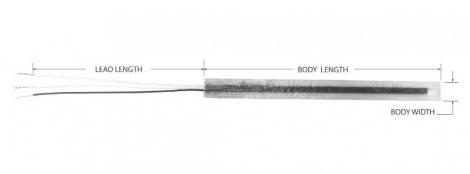

Stator winding thermocouples are mechanically equivalent to stator RTDs and can be substituted where thermocouple input is required. Specify junction location—at the center of the unit or 1.5” from the tip—to place the sensing junction as near as possible to the hottest part of the windings.
Select & Configure Model
| Base Model # | Sensing Element or Junction Type | Class / Temperature Limit | Model Thickness | Leadwires | Normally In Stock | Add to Cart / Configure Part # |
| TC2230 | Select in Configurator | Class F: 155°C (311°F) | 0.125" (3.2 mm) | AWG 24 | Inquire | Configurator |
| TC2228 | Select in Configurator | Class F: 155°C (311°F) | 0.078" (2.0 mm) | AWG 24 | Inquire | Configurator |
| TC2742 | Select in Configurator | Class F: 155°C (311°F) | 0.050" (1.3 mm) | AWG 24 | Inquire | Configurator |
| TC2231 | Select in Configurator | Class H: 180°C (356°F) | 0.125" (3.2 mm) | AWG 24 | Inquire | Configurator |
| TC2229 | Select in Configurator | Class H: 180°C (356°F) | 0.078" (2.0 mm) | AWG 24 | Yes | Configurator |
| TC2227 | Select in Configurator | Class H: 180°C (356°F) | 0.050" (1.3 mm) | AWG 24 | Inquire | Configurator |
