Thermal-Tab Sensors

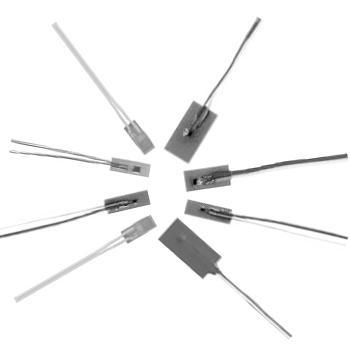

MINCO Thermal-Tab™ Sensors

Install these compact sensors anywhere for accurate point sensing and fast response. All Thermal-Tab modules use a thin-film RTD element. All Thermal-Ribbon models conform to EN60751 Class B tolerance when ordered with a PD platinum element.


• Fast response surface sensing in aerospace, medical and industrial devices
• Rugged lamination construction
• Polyimide, silicone rubber or Mylar™ insulation
• All models are RoHS compliant


Select & Configure Model
Base Model #Sensing Element
or
Junction Type
InsulationTemperature RangeSensor TypeLeadwireTime ConstantNormally
In Stock
Add to Cart /
Configure Part #

S665Select in ConfiguratorPolyimide with elastomer cover coat-50 to 115°C
(-58 to 311°F)
RTDAWG 26, PTFE insulated0.8 secYesConfigurator
S17624Select in ConfiguratorPolyimide-50 to 200°C
(-58 to 392°F)
RTDAWG 26, PTFE or polyimide insulated1.0 secYesConfigurator
S100820Select in ConfiguratorPolyimide film-50 to 260°C
(-58 to 500°F)
RTDAWG 26, PTFE or polyimide insulated0.4 secInquireConfigurator
S667Select in ConfiguratorSilicone rubber with elastomer cover and foil backing-50 to 155°C
(-58 to 311°F)
RTDAWG 24, Silicone insulated1.3 secYesConfigurator
S100725Select in ConfiguratorPolyimide film-50 to 200°C
(-58 to 392°F)
RTDAWG 26, PTFE or polyimide insulated0.6 secInquireConfigurator
S100724Select in ConfiguratorPolyimide film-50 to 200°C
(-58 to 392°F)
RTDAWG 22, PTFE or polyimide insulated1.2 secYesConfigurator
S100723Select in ConfiguratorPolyimide film-50 to 200°C
(-58 to 392°F)
RTDAWG 26, PTFE or polyimide insulated0.9 secInquireConfigurator
S100721Select in ConfiguratorSilicone rubber-50 to 220°C
(-58 to 428°F)
RTDAWG 26, PTFE or polyimide insulated1.5 secYesConfigurator
TS665Select in ConfiguratorPolyimide with elastomer cover coat-50 to 125°C
(-58 to 257°F)
ThermistorAWG 26, PTFE insulated0.8 secInquireConfigurator
TS667Select in ConfiguratorSilicone rubber with elastomer cover and foil backing-50 to 125°C
(-58 to 257°F)
ThermistorAWG 24, Silicone insulated1.3 secInquireConfigurator
